Multi Outdoor Park 5

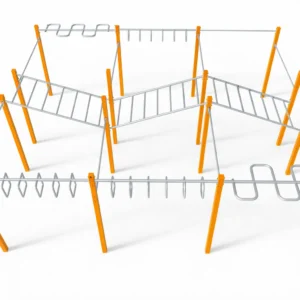

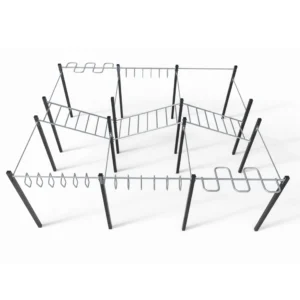

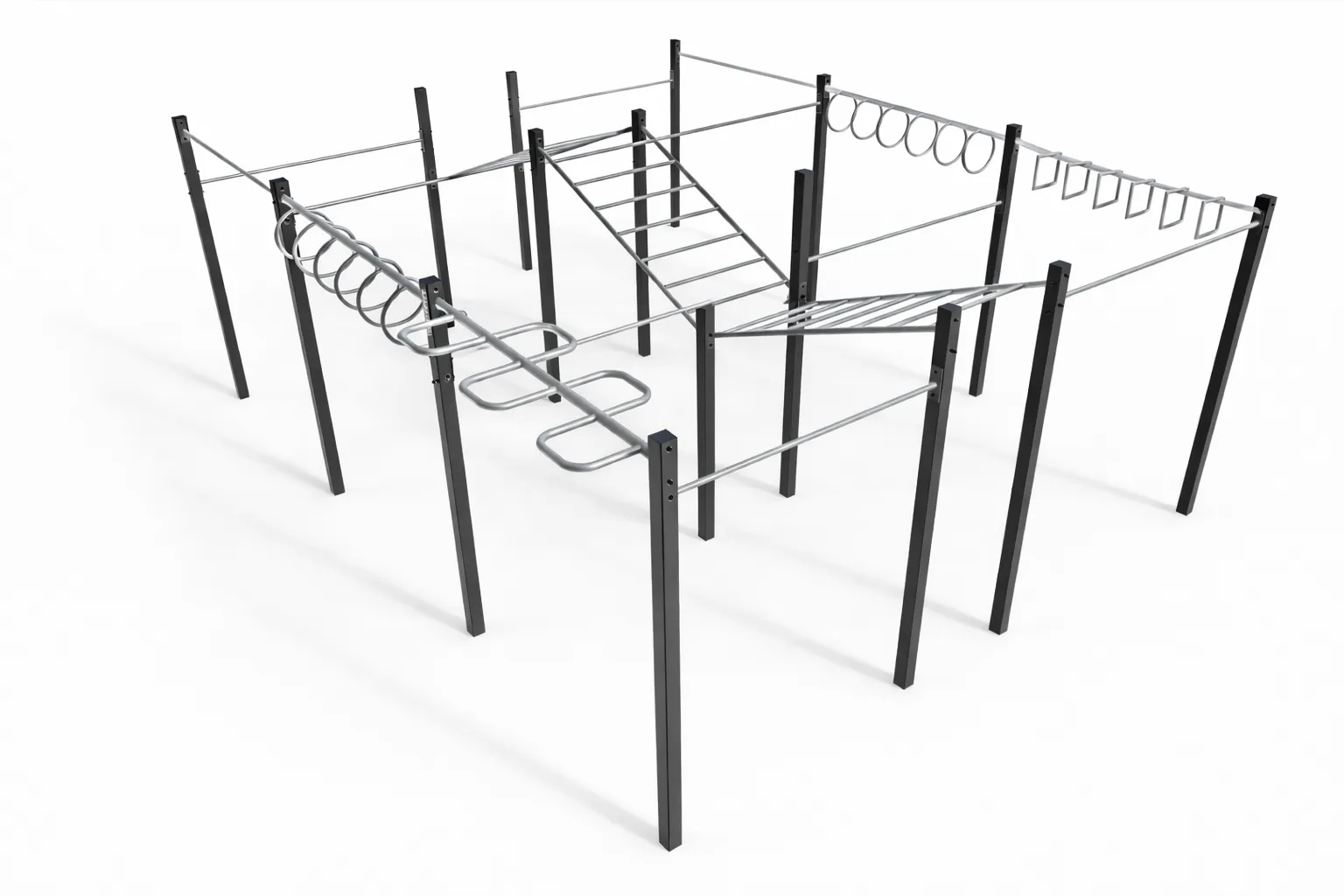

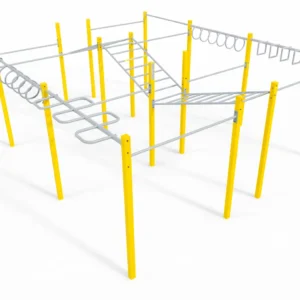

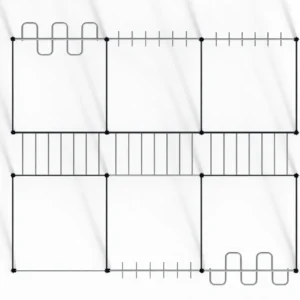

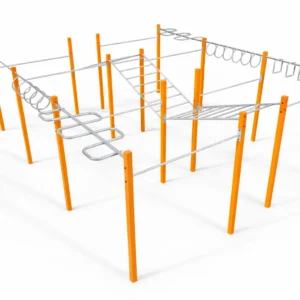

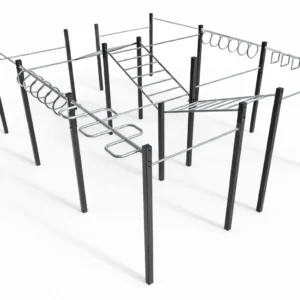

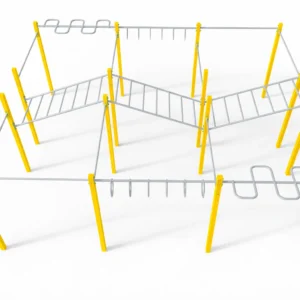

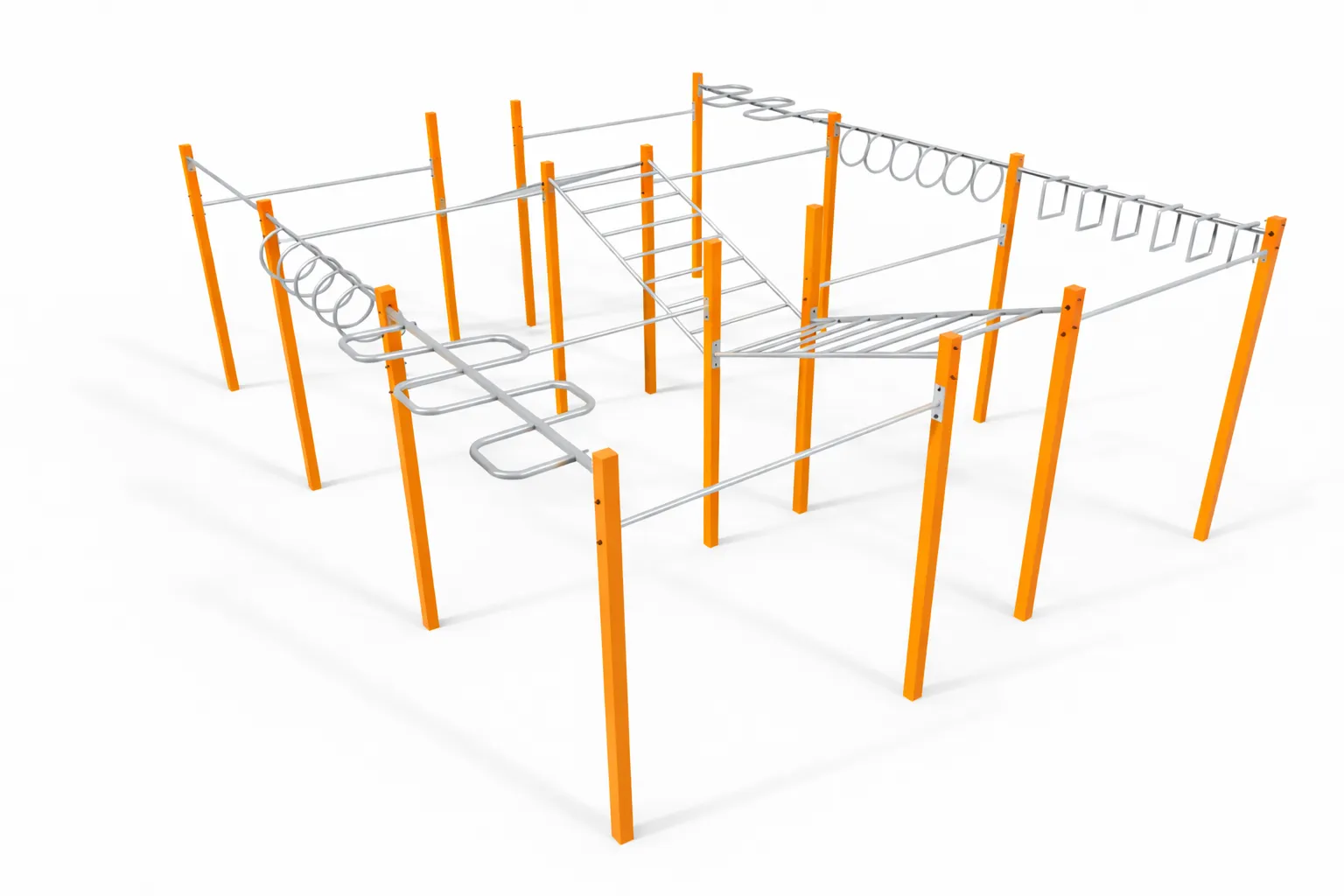

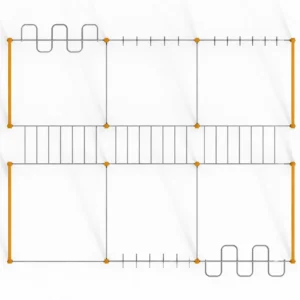

Elements of the Multi Outdoor Park 5

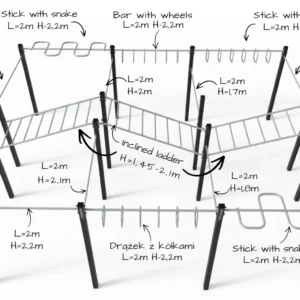

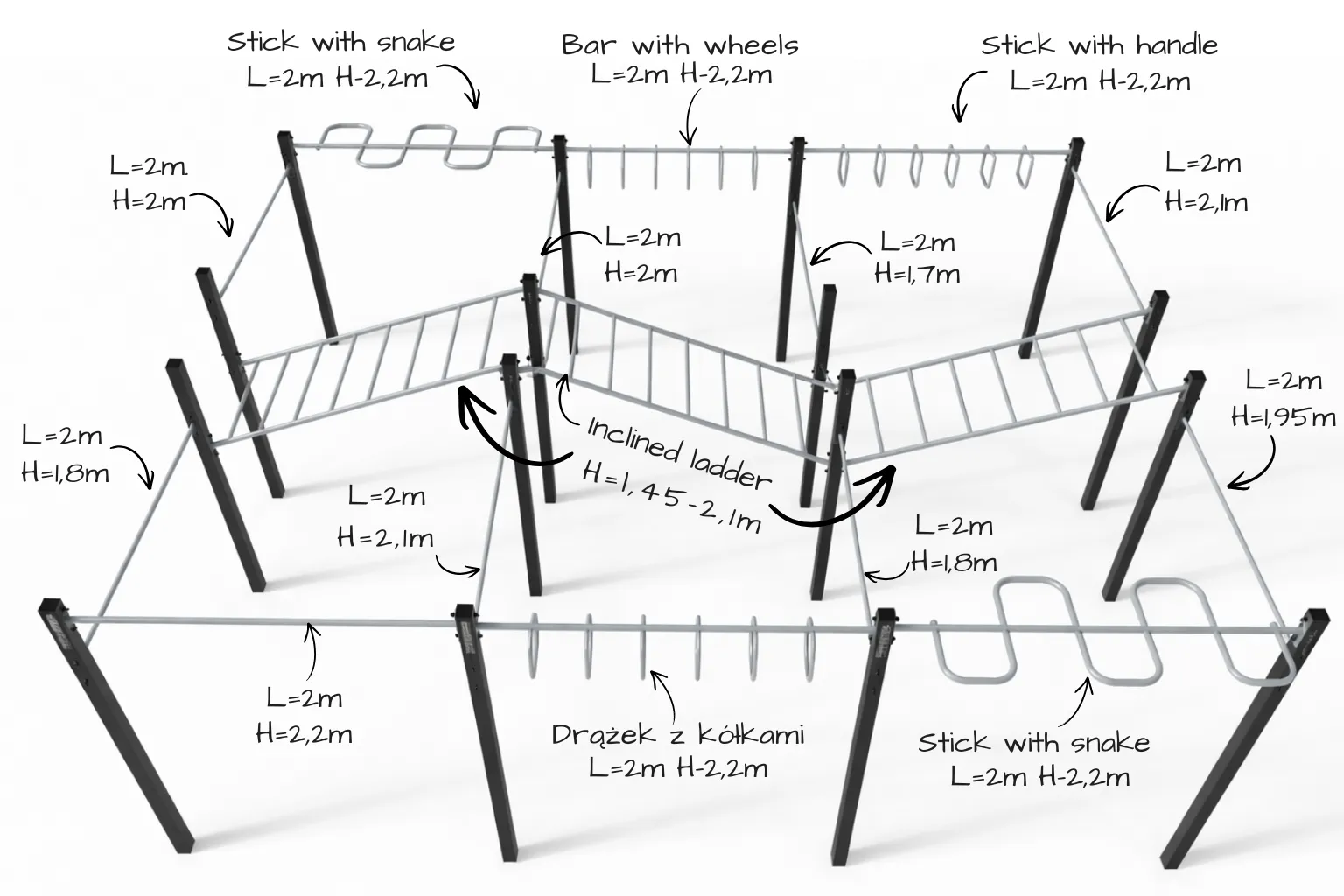

The set includes the following street workout  stations:

• Sticks with snake (L=2 m, H=2.2 m) – coordination and grip element supporting functional training
• Bars with wheels (L=2 m, H=2.2 m) –  elements for shoulder mobility and upper body strength
• Sticks with handle (L=2 m, H=2.2 m) – grip and coordination training element
• Inclined ladders (L=2 m, H=1.45–2.1 m) – angled climbing structure for strength, coordination and functional training
• Pull-up bars at different heights for street workout exercises (L=2m, H=1,7m-2,2m)

The combination of these elements enables strength training, calisthenics, functional workouts and cardio exercises in one outdoor fitness structure.

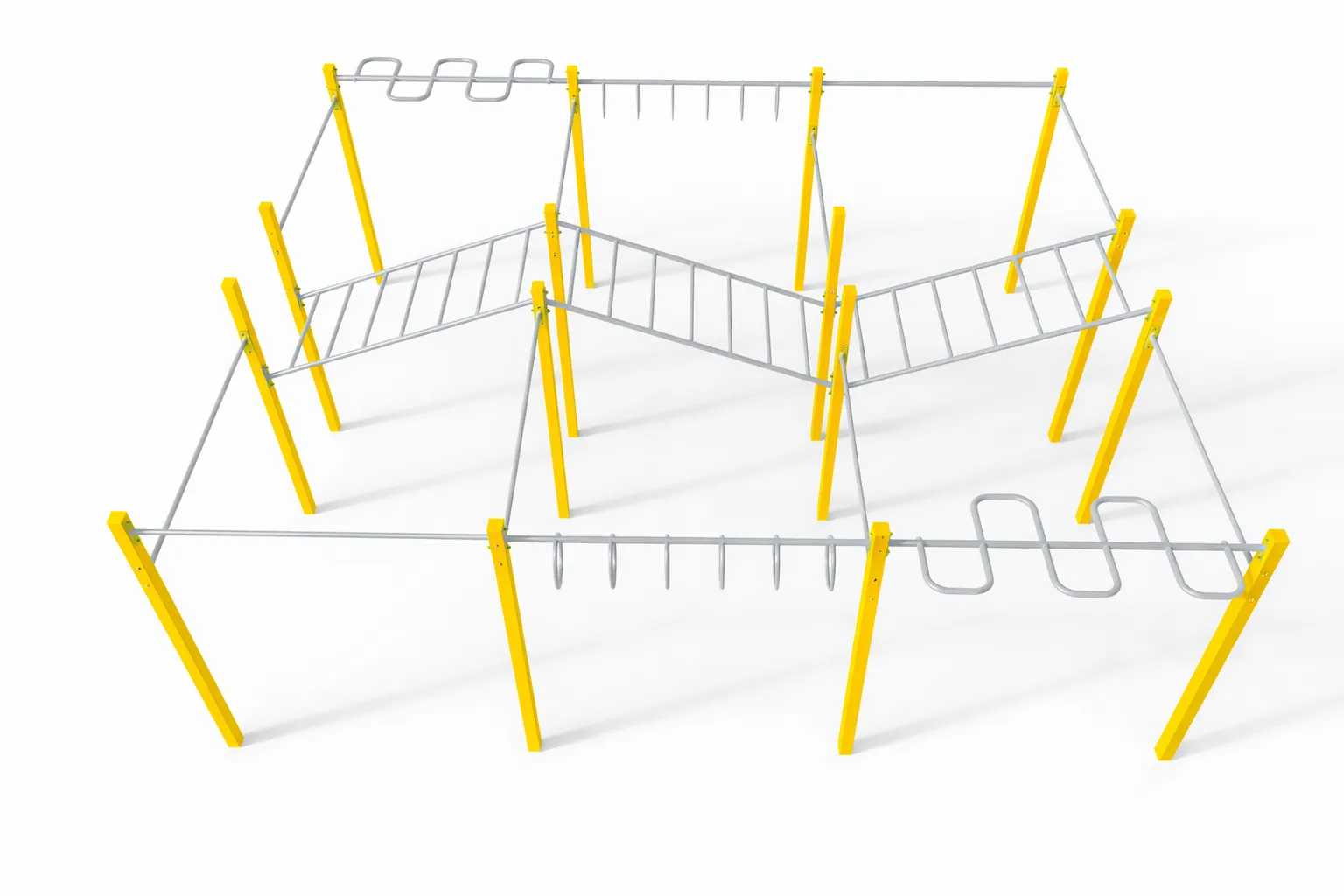

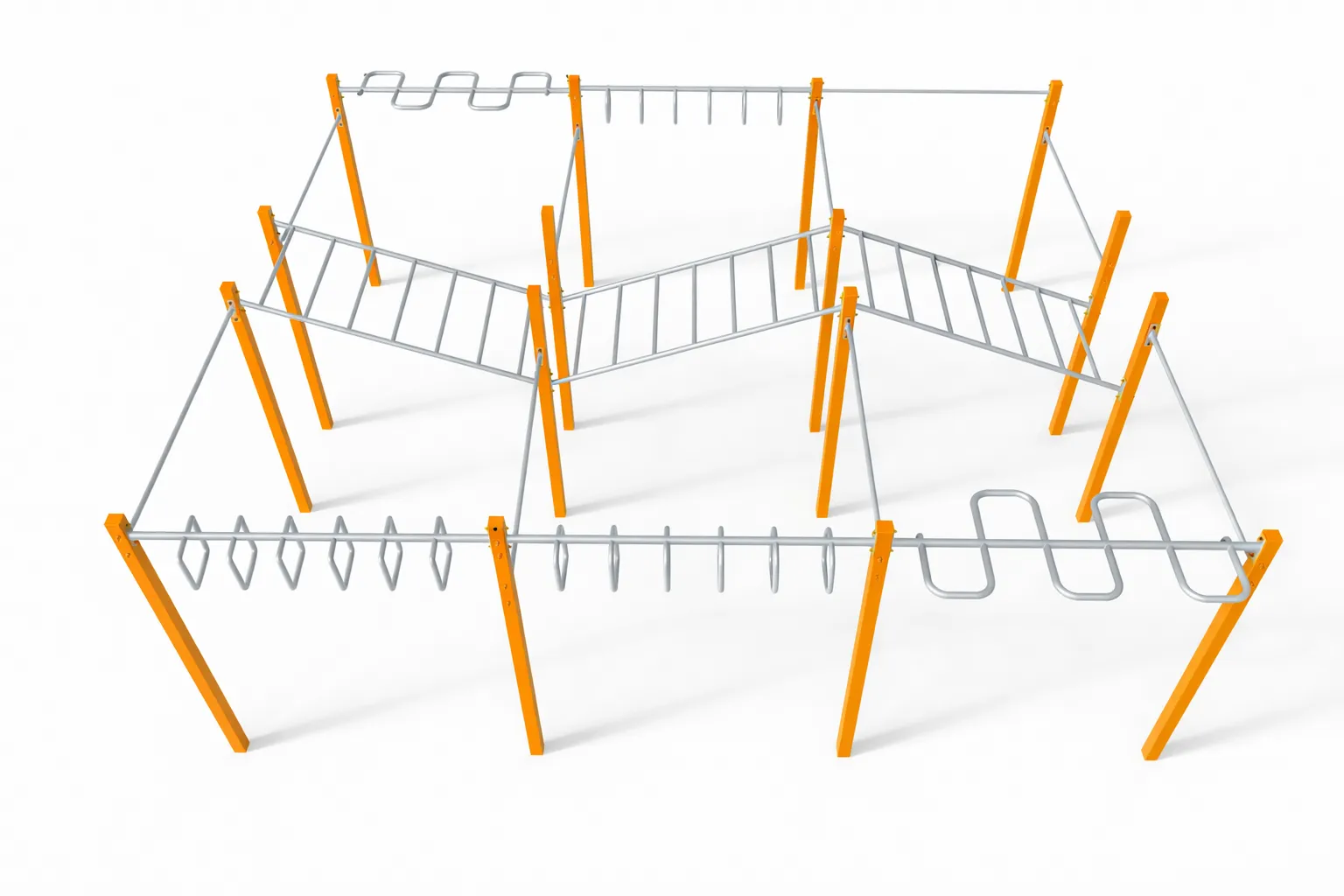

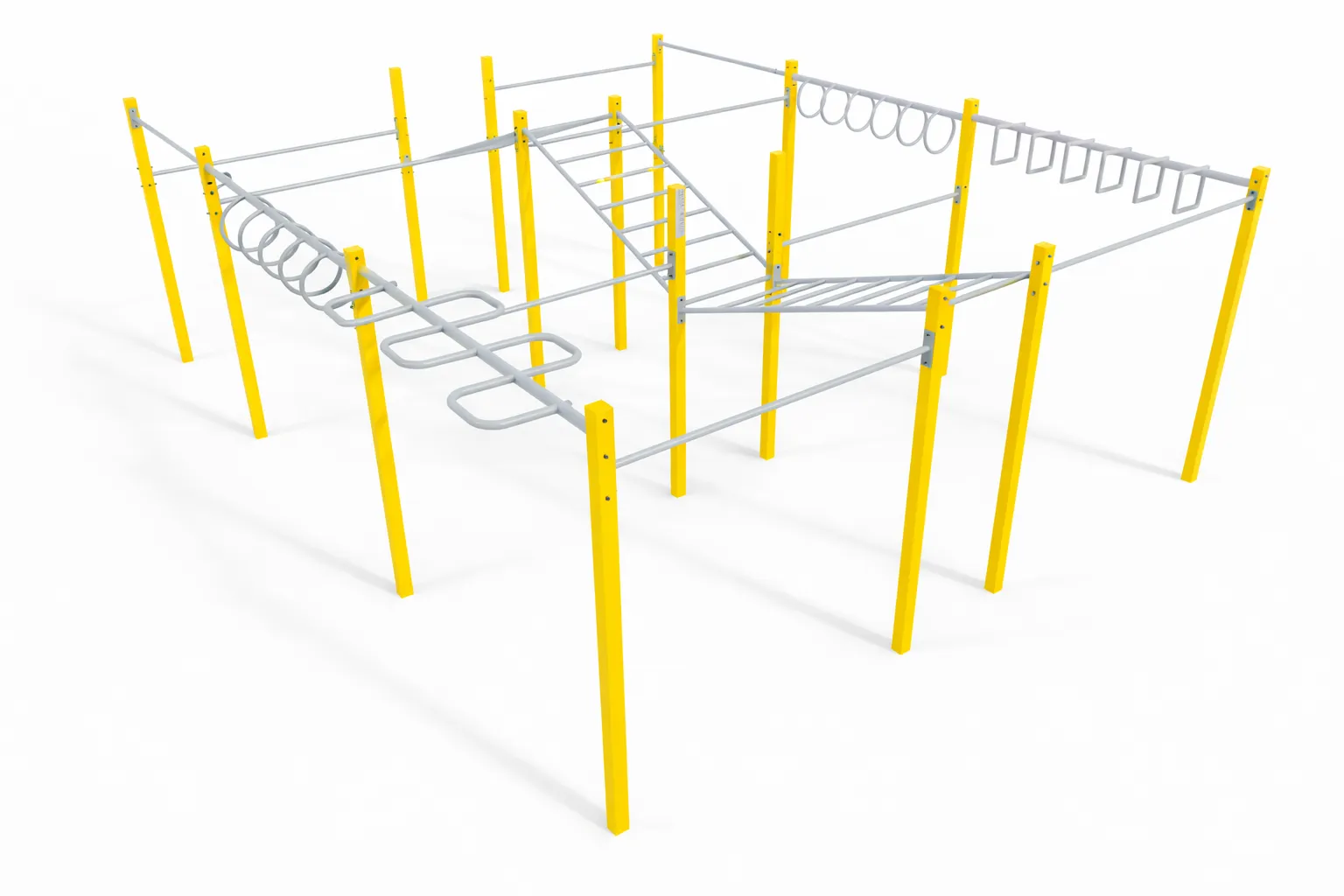

The Multi Outdoor Park set is fully configurable. Different fitness stations from the Street Workout series can be combined, allowing the set to be customized according to the project needs. The final configuration may include any compatible equipment, not only the ones shown in the visualization.

Construction:

• Equipment is made of high-quality welding steel.

• steel profile 80 × 80 mm – wall thickness 3 mm

• steel pipes Ø60.3, Ø42.4, Ø33.7 mm – wall thickness 3.2 mm

• caps made of PE plastic – compliant with REACH regulation

Surface/colour:

In order to ensure high corrosion protection, the devices are shot blasted at a high pressure, zinc galvanizing, and powder painted two times. The first layer consists of high quality zinc coating, whereas the second layer is polyester paint resistant to variable weather conditions.

Our standard colors are:

Yellow and gray – RAL 1018 and 7004

Graphite and silver – RAL 7016 and 9006

Orange and silver – RAL 2000 and 9006

Lime and silver – RAL 6018 and 9006

Type of fastening:

Installation of multi outdoor park is simple and you can do it yourself (We provide detailed user manual). It can be also subcontracted to a specialized company, e.g. dealing with landscaping of green areas.
Detailed dimensions and requirements concerning the concrete foundation may be found in our installation instructions.

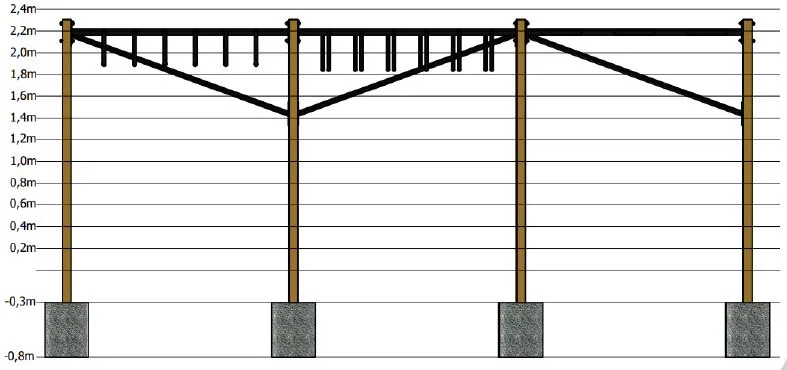

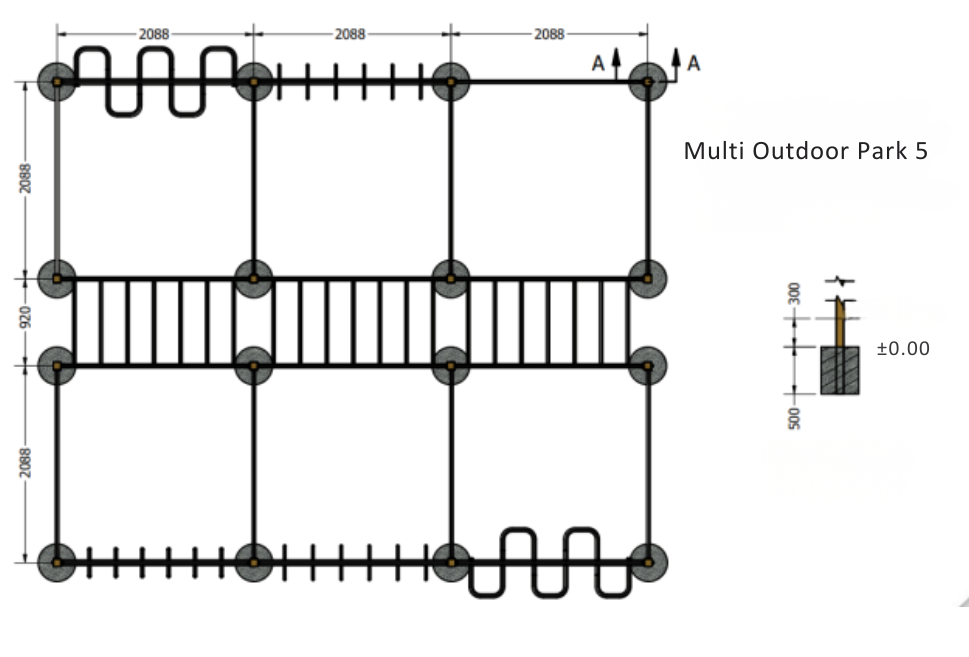

Multi Outdoor Park should be installed 300 mm below ground level, with a minimum diameter of Ø350 mm and a depth of 500 mm. The foundation should be made of B20 or B25 concrete.

Delivery:

We deliver multi outdoor park equipment throughout Europe and around the world. The delivery of equipment is carried out by our company or through a proven transport company. The equipment is carefully and securely packed. The date of delivery is agreed on individually. The delivery is carried out directly to the address indicated.

Certificate:

Multi outdoor park equipment meets the EN 16630:2015 norm.

Guarantee:

We are a manufacturer of street workout and calisthenics equipment. Our outdoor fitness equipment is manufactured in Europe .

We provide a guarantee for all our devices. See our warranty policy.
